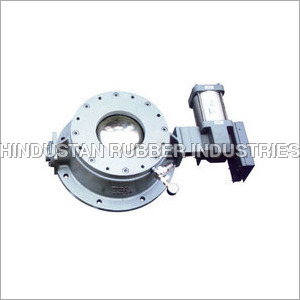

Dome Valves

Dome Valves
Dome Valves
Product Code : 09
Brand Name : HRI ENGINEERING
Product Description

We are a trusted manufacturer, trader, service provider, exporter, importer and supplier of Dome Valves to our valued clients. It incorporates a unique seat sealing method. The valve seat is a flexible and inflatable heavy membrane which is designed to entrap particles at the seat, to prevent their movement under the influence of a pressure differential, and therefore overcome the main cause of wear in valves handling bulk materials or dirty gases containing particulate. Dome Valves are known for high wear resistance, reliability, durability and a long service life.

Specification

Place of Origin: INDIA

Brand Name: “HRI”

Temperature of Media: 200 oC Temperature

Power: Pneumatic

Pressure: Medium Pressure

Media: Fly ash

Material: Casting

Structure: Dome Type

Standard or Nonstandard: Standard



ITEM DESCRIPTION

MATERIAL / MOC

BODY / HOUSING

C.I AS PER IS 210 Gr. FG 260

DOME

C.I AS PER IS 210 Gr. FG 260

AXLE / SHAFT

EN 8

BUSH BEARING FOR STRIKER ARM

Brass

BUSH BEARING FOR TORK ARM

Brass

DOUBLE ACTING PNEUMATIC ACTUATOR

“HRI”

AIR LIMIT SWITCH

“HRI”

TOP PLATE ORDINARY

M.S IS2062


INFLATABLE SEAL

SILICON RUBBER

INSERT RING

M.S IS2062

SPIGOT PIECE

M.S IS2062

GASKET SET BODY TO TOP PLATE
(SET INCLUDE 3NOS.OF 1MM THICK.)

NON METALLIC

EXTERNAL “V”RING

FKM

“O”RING FOR AXLE

FKM

SHAFT SEAL

FKM

SEAL SPACER

M.S IS2062

SPRING PIN (INNER)

SPRING STEEL

SPRING PIN (OUTER)

SPRING STEEL

TORK ARM

C.I AS PER IS 210 Gr. FG 260

STRIKER ARM

C.I AS PER IS 210 Gr. FG 260

GASKET SET BODY TO VESSAL (SET INCLUDE 3NOS.OF 1MM THICK.)

NON METALLIC

“O”RING FOR SPIGOT PIECE

FKM

QUICK EXAUST VALVE 1/4”

“HRI”

QUICK EXAUST VALVE 3/4”

“HRI”

HEX SCREW M16X20

“HRI”

HEX SCREW M20X40

“HRI"
